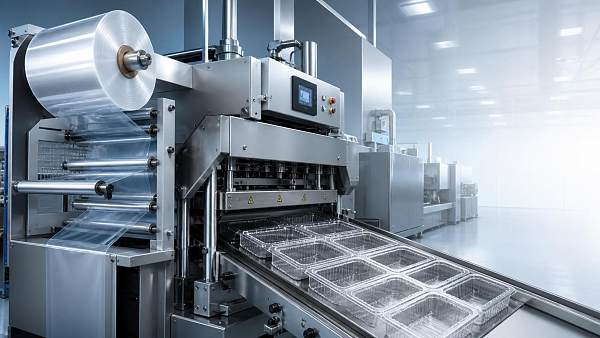

How PET packaging sheets affect thermoforming consistency

Thermoforming consistency begins with the sheet, not the mold

In PET thermoforming, the sheet is often treated as a purchased input and the forming machine as the primary process variable. That division is convenient, but incomplete. A mold can be well designed, a heater bank can be carefully tuned, and a line can still produce unstable packs if the PET sheet does not respond predictably to heat and stretch.

For technical evaluators, this matters because thermoforming inconsistency rarely appears as one isolated defect. It shows up as changing wall thickness, warped flanges, weak corners, haze, web breakage, unstable trim, poor nesting, or variable top-load performance. These effects can raise scrap rates gradually enough that the source is misdiagnosed as operator variation or machine wear.

PET packaging sheets influence the full conversion window: how quickly the web absorbs heat, how evenly it softens, how far it can stretch before thinning, how it cools in the tool, and how much it moves after forming. The relevant question is therefore not simply whether a sheet “can be thermoformed.” It is whether its material profile is sufficiently aligned with the package geometry, equipment capability, recycled-content strategy, and downstream performance requirements.

Why nominal gauge is not enough

Gauge is one of the first specifications buyers check, and it should be checked. Yet a sheet specified at 500 microns can behave very differently from another 500-micron sheet on the same thermoforming line. Average thickness tells the buyer how much material is present in total. It does not reveal where that material sits across the web, how uniform the polymer structure is, or how the sheet will redistribute during draw.

Gauge tolerance and cross-web profile are especially important when forming deep trays, cups, lids, or packs with sharp radii. A web that is heavier near the edges and lighter in the center may pass an average-gauge inspection but create inconsistent container bases or sidewalls. In multi-cavity production, this can become a cavity-to-cavity problem: outer cavities may form differently from center cavities even though the machine settings are unchanged.

Technical teams should distinguish between at least three measurements:

• Average sheet gauge across the delivered roll.
• Cross-direction thickness profile, including edge behavior.
• Roll-to-roll and lot-to-lot consistency at the same nominal specification.

The third point is usually where procurement and processing requirements diverge. A sheet supplier may meet an agreed nominal tolerance while a converter still sees different forming behavior between deliveries. For high-output lines, the usable specification should therefore include not only thickness limits, but also the test method, sampling plan, and acceptance logic for profile variation.

Intrinsic viscosity affects the forming window

Intrinsic viscosity, commonly abbreviated as IV, is a practical indicator of PET molecular weight and is closely tied to melt strength, toughness, and behavior during reheating and stretching. It should not be treated as a stand-alone quality score: a higher IV is not automatically better for every application. But unexplained variation in IV can narrow the operating window and make forming results less predictable.

In general terms, PET sheet with insufficient molecular integrity may lose strength more readily at forming temperature. This can contribute to excessive thinning, weak corners, or loss of dimensional control in demanding draw ratios. Material with a higher or more stable IV profile may provide better resistance to stretch, but it may also require adjustments to heating and cycle conditions. The optimal range depends on sheet construction, package design, forming depth, plug-assist strategy, and whether the product is amorphous PET, crystallized PET, or a multilayer structure.

For technical evaluation, the critical issue is consistency rather than a single target value on a certificate of analysis. If IV shifts between lots, operators may compensate by raising or lowering heater settings. That may recover the immediate production run, but it also increases dependence on manual adjustment and makes process data less transferable.

A more useful supplier discussion is: what IV control range is maintained, how is it measured, and how does the producer manage lot transitions, start-up trim, and regrind? These questions are particularly relevant for transparent food packs, where material changes can affect both process stability and visual quality.

Crystallinity and thermal history shape the heating response

PET is highly sensitive to thermal history. Two sheets with similar resin origin and gauge can absorb and distribute heat differently if their crystallinity, orientation, cooling history, or residual stress differ. During thermoforming, that difference affects sag behavior, plug interaction, forming pressure response, and post-form shrinkage.

Amorphous PET sheet is widely used for clear packaging because it can deliver high transparency and formability. However, it must be heated within a controlled range. Uneven heating can lead to local overstretching, whitening, surface distortion, or loss of optical clarity. In certain applications, excessive heat exposure can also create crystallization-related haze or brittleness, depending on the material formulation and cycle conditions.

For products intended for elevated-temperature service, crystallized PET systems may be used, but the process requirements are different. CPET packaging is not simply a higher-temperature version of APET. It involves a different balance of crystallinity development, mold temperature, cycle time, and functional performance. A line designed around clear APET trays should not assume that switching to a heat-resistant PET format is a minor material substitution.

Technical evaluators should ask suppliers for information that helps explain thermal behavior, not merely the product name. Useful items include density, DSC-based thermal characterization where relevant, recommended reheat conditions, residual stress indicators if available, and the relationship between sheet grade and intended forming method. Values and test conditions should be compared carefully because supplier methods are not always directly equivalent.

Material distribution is a combined sheet-and-tool problem

When a formed pack fails a thickness target, the mold is often blamed first. Sometimes that is correct. Plug shape, plug material, plug timing, vacuum response, pressure assist, and venting can all influence material distribution. But the sheet establishes the starting condition for every one of those mechanisms.

A stable PET sheet will soften uniformly enough that the plug can pre-distribute material in a repeatable way. A sheet with inconsistent thermal response may make a well-designed plug appear ineffective. The result can be a familiar pattern: acceptable average wall thickness but thin regions at corners, shoulders, hinge areas, or the transition from base to sidewall.

Deep-draw packaging makes this interaction more pronounced. If the package includes a narrow base, tall sidewalls, a pronounced flange, or complex rib geometry, sheet selection should be validated against a thickness map rather than one or two hand measurements. In practical terms, a converter should identify minimum-thickness zones linked to actual failure modes: puncture during filling, flange distortion in sealing, collapse in stacking, or cracking during transport.

Recycled PET content changes the evaluation burden

Recycled content is becoming a central issue in packaging development, driven by customer commitments, recycling targets, and emerging packaging policy requirements in several markets. The direction of travel is clear, although exact legal obligations vary by jurisdiction and application and should be verified for the target market. For PET thermoforming, the engineering question is not whether recycled PET is viable. It is how a specific recycled-content formulation behaves in a specific forming and end-use system.

Well-managed rPET-containing sheet can be processed successfully at meaningful inclusion levels. However, recycled feedstock introduces additional variables that must be controlled: IV reduction, contamination risk, color shift, acetaldehyde-related concerns in some applications, black specks, gels, moisture sensitivity, and broader batch variability. These risks do not make rPET unsuitable. They make incoming-quality control and supplier qualification more important.

There is also a common oversimplification in sustainability discussions: more recycled content is assumed to be automatically better. From a technical perspective, the right target is the highest recycled-content level that maintains the required food-contact status, visual standard, forming stability, mechanical performance, and recycling pathway for the finished pack. A material change that increases recycled content but produces more scrap, downgraded packs, or shorter shelf-life performance may not deliver the intended environmental result.

For food-contact applications, regulatory compliance cannot be inferred from a generic statement that a sheet contains rPET. Technical teams need documentation appropriate to the market, intended food type, temperature conditions, and contact duration. In the European Union, for example, recycled plastics used in food-contact applications are subject to specific regulatory requirements, and applicable authorizations and declarations should be reviewed for the exact supply chain and use case. Requirements elsewhere differ and should be confirmed with regulatory specialists.

Surface quality matters beyond appearance

Clear PET packaging is judged immediately on shelf. Scratches, flow marks, haze, gels, contamination, or inconsistent gloss can trigger rejection even when the package is mechanically functional. But surface quality is not only a branding issue. It can affect inspection systems, label adhesion, printing performance, sealing appearance, and consumer perception of product integrity.

In automated operations, surface variation can create less obvious problems. Camera systems may falsely identify defects when gloss or haze changes between lots. Anti-fog coatings, printable surfaces, barrier layers, and release characteristics can alter the way sheets heat or interact with downstream processes. A packaging specification that only defines visual acceptance after forming is therefore incomplete; the technical team should understand the sheet’s surface treatment, coextruded structure, and any coating limitations before approving it.

This is particularly important when PET trays must interface with lidding films, pressure-sensitive labels, thermal-transfer codes, or anti-counterfeit features. The pack is a system. A sheet that forms well but causes inconsistent seal appearance or label application can still become the source of line inefficiency.

How to qualify a PET sheet for a production line

Qualification should be designed around the actual package and process, not around a generic resin datasheet. Laboratory characterization is useful, but it cannot replace a controlled machine trial. The goal is to establish whether the sheet has an adequate operating window, not merely whether it can form under ideal conditions.

A practical evaluation protocol normally includes incoming inspection, controlled forming trials, post-form measurements, and downstream validation. The trial should cover more than one roll and, where possible, more than one production lot. A single successful roll can demonstrate compatibility; it does not establish supply consistency.

• Confirm gauge, width, roll winding quality, edge condition, and surface cleanliness on receipt.
• Record sheet lot, resin or rPET declaration, IV data where supplied, storage conditions, and drying requirements.
• Run a structured heater-temperature and cycle-time study instead of relying on one inherited recipe.
• Measure thickness at defined critical zones across multiple cavities and across the roll length.
• Check flange flatness, nesting, dimensions, visual quality, top-load or compression performance, and seal compatibility.
• Track scrap categories separately, since thinning, web instability, haze, and trim defects often have different root causes.
• Repeat the evaluation after a lot change and after normal line stoppages or restarts.

For high-volume programs, it is worth agreeing on a change-notification process with the sheet supplier. Changes in resin source, recycled-content source, layer ratio, masterbatch, process conditions, or specification limits can all affect conversion behavior. A supplier may regard such changes as internal process optimization; a thermoformer may experience them as an unexpected shift in machine capability.

Do not separate purchasing criteria from process capability

Lowest-cost PET sheet can be expensive when evaluated only after it reaches the forming line. Scrap, extra energy consumption, slower cycles, more operator intervention, rejected packs, and unplanned qualification work all change the true material cost. Conversely, an overly tight specification can add cost without improving the package if it controls parameters that are not connected to real process risk.

The most effective purchasing specification is therefore built from process evidence. It identifies the few material attributes that demonstrably affect the package: gauge profile, IV control, optical quality, recycled-content consistency, forming-temperature range, food-contact documentation, and supply traceability. It also defines what happens when a lot falls outside the agreed range.

As packaging regulations push the market toward lighter structures, recyclable mono-material designs, and higher recycled content, PET sheet selection will become less forgiving. The sheet that supports consistent thermoforming is not necessarily the one with the most ambitious headline claim. It is the one whose material behavior is understood well enough that the converter can repeatedly turn it into a compliant, functional, and visually reliable package.
