Electronic protective materials sit at the intersection of packaging science, product reliability, and operational risk control. In electronics supply chains, a film or bag is not just a wrapper. It is a controlled barrier against moisture, particles, corrosion, and electrostatic discharge that can quietly damage components long before failure is visible.

That is why barrier data and ESD data deserve equal attention. A package may look strong and still perform poorly if water vapor transmission is too high, surface resistance drifts out of range, or sealing quality collapses during transport. For businesses managing sensitive devices, the details behind electronic protective materials often decide whether goods arrive usable, traceable, and compliant.

Why this category matters more now

Electronics now move through longer, faster, and more climate-variable logistics networks. Components may leave a dry production area, pass through humid ports, cold storage, cross-border warehouses, and automated fulfillment systems before final assembly or retail delivery.

Each step adds exposure. Moisture can trigger oxidation or shorten shelf life. Dust and ionic contamination can affect fine-pitch assemblies. Static charge can damage chips instantly or create latent defects that appear weeks later.

This wider risk picture also explains why PPCS follows high-barrier films, specialty coatings, labels, cushioning, and marking systems together. In practice, protection is never a single material decision. It is a system decision involving film structure, adhesive behavior, identification durability, handling conditions, and environmental compliance.

What electronic protective materials actually include

The term covers several material families used to protect electronic parts, subassemblies, and finished devices during storage, handling, and transport. They may look similar on the outside, but their functions are different.

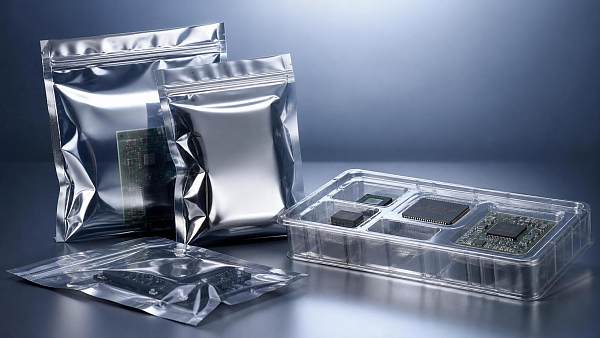

  • Moisture barrier bags built with multilayer structures, often combining PET, aluminum foil, nylon, or PE.
  • Static shielding bags designed to divert electrostatic fields and reduce discharge risk.
  • Antistatic films, liners, trays, and foams used for temporary charge control during internal movement.
  • Protective labels and ribbons that preserve identification under abrasion, heat, and humidity.
  • Cushioning materials that prevent impact while avoiding particle shedding or static buildup.

A useful way to read the category is this: barrier materials defend against the environment, while ESD materials defend against electrical imbalance. Many applications require both at the same time.

The barrier specs that deserve close reading

Barrier performance is often simplified into “good” or “bad,” yet the real question is barrier against what, for how long, and under which conditions. Electronic protective materials should be matched to actual exposure, not generic claims.

Water vapor transmission rate

WVTR is one of the most important numbers for moisture-sensitive devices. Lower WVTR means less water vapor passes through the material over time. For dry-packed semiconductors, this is often the first spec reviewed.

Still, a low lab number does not guarantee field protection. Temperature, humidity, flex cracking, seal quality, and package opening frequency can change real performance dramatically.

Oxygen transmission rate

OTR matters less than WVTR in many electronics cases, but it remains relevant for corrosion-sensitive metallic parts, coated contacts, and mixed-product packaging environments. When oxidation risk exists, OTR should not be ignored.

Seal integrity and puncture resistance

A superior barrier film fails if the seal channel leaks or corners puncture during pallet movement. Seal strength, hot tack behavior, and dart impact resistance are practical indicators of whether laboratory barrier survives logistics reality.

This is where film converting knowledge becomes important. BOPP and PET structures, coating uniformity, and micron-level lamination quality all shape repeatability. PPCS often treats these as connected variables rather than isolated specs.

How to interpret ESD performance without confusion

Many packaging teams use “antistatic,” “conductive,” and “shielding” as if they mean the same thing. They do not. Choosing the wrong type can create false confidence.

Material type Primary purpose Typical concern
Antistatic Reduce charge generation May not shield external fields
Conductive Provide charge path to ground Can be unsuitable for some direct-contact uses
Static shielding Attenuate electrostatic fields and discharge Performance depends on layer design and damage resistance

Key ESD indicators usually include surface resistance, volume resistance, charge decay, and shielding effectiveness. Surface resistance helps indicate how charges move across a material. Charge decay shows how quickly a material dissipates an induced charge.

The practical point is simple. If components face external electrostatic fields, antistatic alone is often insufficient. If the environment is controlled and handling is internal, antistatic may be enough. Application context sets the correct target.

Where failures usually begin

Problems with electronic protective materials rarely begin with one dramatic event. More often, they start with small mismatches between specification sheets and actual workflows.

  • A moisture barrier bag is selected correctly, but desiccant volume and humidity indicator use are inconsistent.
  • An ESD bag passes incoming checks, but repetitive folding cracks a metallized shielding layer.
  • Labels remain legible in storage, then fail after friction, alcohol wiping, or freezer exposure.
  • Cushioning protects against shock, yet generates particles or charge during unpacking.
  • A recyclable structure is adopted, but its barrier level no longer fits sensitive components.

These examples show why a packaging review should include material science, logistics handling, and identification durability together. The label, the film, the seal, and the tray often fail as a chain, not alone.

Reading material choices through real scenarios

Different shipping and storage profiles call for different balances between protection, cost, and sustainability. A broad overview helps narrow the options faster.

Dry-packed semiconductors and PCB assemblies

This is the classic high-risk case. Moisture barrier and ESD shielding are both necessary. WVTR, seal consistency, and shielding effectiveness matter more than appearance or simple thickness claims.

Consumer electronics in distribution

Finished goods need broader system protection. Cushioning, printed identification, tamper evidence, and shelf presentation may all matter alongside electrostatic control. Here, integrated packaging intelligence becomes valuable.

Repair parts and service inventories

Long storage time changes the equation. Material aging, additive migration, label readability, and repeat opening become central concerns. Short-term passing results may not predict long-term usability.

A practical framework for evaluating electronic protective materials

When comparing suppliers or redesigning packs, a short evaluation framework prevents expensive oversights.

  • Map the full exposure path, including humidity, temperature shifts, handling frequency, and transit duration.
  • Separate moisture risk from ESD risk, then identify where both overlap.
  • Verify test standards, not just headline values, because methods and conditions affect comparability.
  • Check converting details such as seal window, puncture resistance, and layer durability after flexing.
  • Review labeling and traceability materials under the same environment as the protective pack.
  • Consider recyclability and lightweighting only after confirming functional protection remains adequate.

This last point is increasingly important. Sustainable packaging targets are influencing film gauges, material combinations, and coating choices. Yet lighter or simpler structures only create value if they preserve the required barrier and ESD control.

What to watch next

The next wave in electronic protective materials will be shaped by two pressures at once. One is higher protection precision for smaller, more sensitive devices. The other is stronger pressure for mono-material design, recyclability, and lower material consumption.

That tension will push more attention toward coating chemistry, ultra-thin barrier structures, smarter labels, and packaging systems that combine physical defense with stronger traceability. It also makes cross-functional review more valuable than isolated material selection.

A sensible next step is to review current packs against actual failure modes, not purchasing habits. Start with the barrier and ESD specs tied to your most sensitive products, then compare them with transport conditions, storage duration, label demands, and sustainability targets. That process usually reveals where electronic protective materials are truly adding protection, and where they only appear to do so.
